MMPQ6700
Bipolar Transistor Array, Complementary NPN and PNP, 40 V, 40 V, 200 mA, 200 mA, 1 W

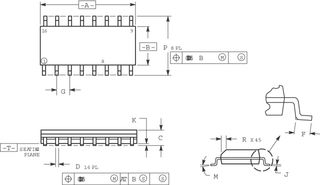

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Impossible de récupérer les informations sur la disponibilité
Informations produit
FabricantONSEMI
Réf. FabricantMMPQ6700
Code Commande07F9152
Fiche technique
Transistor PolarityComplementary NPN and PNP
Collector Emitter Voltage Max NPN40V
Collector Emitter Voltage Max PNP40V
Continuous Collector Current NPN200mA
Continuous Collector Current PNP200mA
Power Dissipation NPN1W
Power Dissipation PNP1W
Transistor Case StyleSOIC
DC Current Gain hFE Min NPN30hFE
Transistor MountingSurface Mount
DC Current Gain hFE Min PNP30hFE
No. of Pins16Pins
Operating Temperature Max150°C
Transition Frequency NPN200MHz
Transition Frequency PNP200MHz
Qualification-
Product Range-
MSLMSL 1 - Unlimited
SVHCNo SVHC (27-Jun-2024)
Spécifications techniques
Transistor Polarity
Complementary NPN and PNP
Collector Emitter Voltage Max PNP
40V
Continuous Collector Current PNP
200mA
Power Dissipation PNP
1W
DC Current Gain hFE Min NPN
30hFE
DC Current Gain hFE Min PNP
30hFE
Operating Temperature Max
150°C
Transition Frequency PNP
200MHz
Product Range
-
SVHC
No SVHC (27-Jun-2024)
Collector Emitter Voltage Max NPN
40V
Continuous Collector Current NPN
200mA
Power Dissipation NPN
1W
Transistor Case Style
SOIC
Transistor Mounting
Surface Mount
No. of Pins
16Pins
Transition Frequency NPN
200MHz
Qualification
-
MSL
MSL 1 - Unlimited
Documents techniques (2)
Produits associés
2 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (27-Jun-2024)
