FPL1007.07

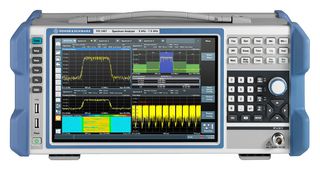

FPL1007.07 is a 5KHz to 7.5GHz signal and spectrum analyser bundle. This spectrum analyser combines excellent RF performance with a small footprint. The light weight and optional battery/DC power make it the ideal instrument for the lab and in the field. Operating the multipoint touchscreen instrument is intuitive and fun.

• One instrument for multiple task (spectrum analysis, power meter, analogue, digital signal analysis)
• Fast and easy integration for automated tests
• DANL at 1GHz -166dBm, TOI at 1GHz is typically +20dBm
• Phase noise at 1GHz (10KHz offset) is typically -108dBc (1Hz)
• Spurious response is typically < -70dBc
• MultiView with sequencer
• Spectrum analysis from 5KHz
• High-resolution (1280 x 800 pixel) multi-touch screen
• Portability, optional battery and 12V/24V DC power

Contenu

FPL1007 spectrum analyser, Power cable and quick start guide.
