FCS-01

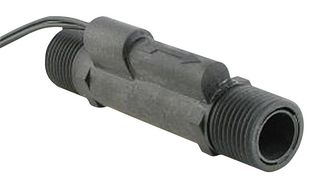

Flow Sensor, SPST-NO, 1A, 0.6l/min, Water, 10bar, 3/8" BSP Male Thread, 250VAC/200VDC, FCS Series
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantTE CONNECTIVITY
Réf. FabricantFCS-01
Code Commande66W8840
Gamme de produitFCS Series
Votre numéro de pièce
180 En Stock
Vous en voulez davantage ?
11 Livraison dans 1-3 jours ouvrables(US stock)
169 Livraison dans 2-4 jours ouvrables(UK stock)
Commander avant 18:00
| Quantité | Prix |
|---|---|
| 1+ | 35,870 $ |
| 10+ | 33,740 $ |
| 25+ | 32,040 $ |
| 50+ | 29,850 $ |
| 100+ | 27,830 $ |
| 250+ | 24,980 $ |
| 500+ | 23,590 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
35,87 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantTE CONNECTIVITY
Réf. FabricantFCS-01
Code Commande66W8840
Gamme de produitFCS Series
Fiche technique
Flow Switch TypeSPST-NO
Flow Rate Min-
Flow Rate Max1l/min
Operating Pressure Min-
Operating Pressure Max10bar
Supply Voltage Min-
Supply Voltage Max-
Contact Rating1A
Switching Voltage AC Max250V
Switching Voltage DC Max200V
Media TypeWater
Process Connection Size3/8"
Process Connection TypeBSP Male Thread
Pipe Size-
Housing MaterialNoryl
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product RangeFCS Series
Qualification-
SVHCDibutyl phthalate (DBP) (21-Jan-2025)
Port Size9.525mm
Aperçu du produit
FCS-01 is a FCS series flow sensor suitable for water and air flow switching. Application includes leak detection, flow sensing, mains water control, cooling systems, circulation pump protection.
- Rugged high grade noryl, minimum pressure drop
- Operates from a small head of water, mount in any axis
- 3/8inch BSP male threaded fittings, suitable for hot and cold potable water
- Reed switch reliability file E125629, meets UL 94-HB flammability rating
- Food grade material, stainless steel spring material
- Black noryl housing and shuttle material and ruthenium contact material
- SPST switch action (reed switch), N/O, close with flow operate mode, A contact form, IP65 rating
- 200VDC max switching voltage, 250VAC max switching voltage
- 1Amps max switching current, 40W max switching load
- 2 x 0.5M single insulated cable length, stripped cables connection type
Spécifications techniques
Flow Switch Type
SPST-NO
Flow Rate Max
1l/min
Operating Pressure Max
10bar
Supply Voltage Max
-
Switching Voltage AC Max
250V
Media Type
Water
Process Connection Type
BSP Male Thread
Housing Material
Noryl
Operating Temperature Max
85°C
Qualification
-
Port Size
9.525mm
Flow Rate Min
-
Operating Pressure Min
-
Supply Voltage Min
-
Contact Rating
1A
Switching Voltage DC Max
200V
Process Connection Size
3/8"
Pipe Size
-
Operating Temperature Min
-30°C
Product Range
FCS Series
SVHC
Dibutyl phthalate (DBP) (21-Jan-2025)
