RSA603A

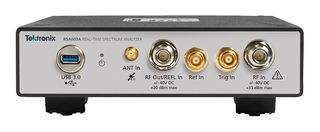

The RSA603A from Tektronix is a RSA600A series portable spectrum analyzer. The RSA603A USB spectrum analyzer offers high bandwidth laboratory spectrum analysis in a small, very transportable package. It brings real-time spectrum analysis and wide analysis bandwidth to solving the problems of engineers who need to characterize, validate and manufacture their designs. The heart of the system is the USB-based RF spectrum analyzer that captures 40MHz bandwidths with great fidelity. The RSA603A operates with SignalVu-PC, a powerful program used as the basis of Tek's traditional spectrum analyzers, offering a deep analysis capability previously unavailable in low-cost laboratory solutions. It is used in spectrum management, interference hunting, maintenance, installation and repair of radio networks.

• Frequency range from 9KHz to 3GHz
• Standard GPS/GLONASS/Beidou receiver for mapping
• Optional tracking generator for gain/loss, antenna and cable measurements
• Streaming capture can be used to record and play back long term events
• Amplitude accuracy of 0.2 dB to 3GHz (95% confidence)
• Application programming interface included for development of custom programs
• 100μsec minimum signal duration with 100% probability of intercept ensures to see problem every time
• Operating temperature range from -10°C to +55°C
• Dimension of 222.3mm x 75mm x 358.6mm (W x H x L), net weight 2.79Kg
• Requires a PC with Windows 7, Windows 8/8.1, or Windows 10, 64-bit operating system

Applications

Test & Measurement

Contenu

RSA603A spectrum analyzer, Tablet PC, Calibration kits, Adapters and phase stable cables.

Remarques

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
