Audio Transformer, Data / Voice Coupling, 2:1, 600 ohm, 600 ohm, 3.5 kHz, 1.5 kV

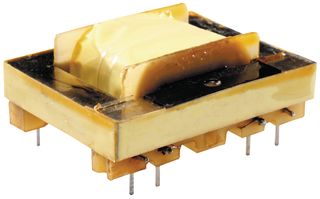

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRIAD MAGNETICS
Manufacturer Part NoTY-306P
Newark Part No.52F1806
Product RangeTY Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
| Quantity | Price |
|---|---|
| 1+ | $36.670 |
| 5+ | $33.880 |
| 10+ | $31.420 |
| 25+ | $28.940 |
| 50+ | $27.140 |
| 100+ | $25.660 |
| 250+ | $23.360 |
Price for:Each
Minimum: 1
Multiple: 1
$36.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTRIAD MAGNETICS
Manufacturer Part NoTY-306P
Newark Part No.52F1806
Product RangeTY Series
Technical Datasheet
Current Rating75mA
Turns Ratio2:1
Primary Impedance600ohm
Secondary Impedance600ohm
Secondary Power-
Transformer MountingThrough Hole
Frequency Max3.5kHz
Isolation Voltage1.5kV
Transformer ApplicationsData/Voice Coupling
DC Resistance Primary31ohm
DC Resistance Secondary108ohm
Transformer TerminalsPC Pin
Frequency Min300Hz
Product RangeTY Series
SVHCNo SVHC (25-Jun-2025)
Product Overview
The TY-306P is a data/voice coupling Triad Audio Transformer designed to meet the requirements for access over leased private lines or through the dial-up switched telephone network. The TY series transformers are used for a variety of applications including impedance matching, isolation, repeat coil, line balancing, bridging and hybrid circuits.
- 300 to 3500Hz Data/voice frequency range
