ABS-224-RC
Speaker, General Purpose, Paper Cone, Panel Mount, 3 W, 4 ohm, 200 Hz to 20 kHz

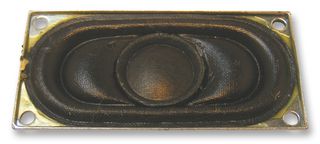

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMULTICOMP PRO
Réf. FabricantABS-224-RC
Code Commande51R6319
Gamme de produitMulticomp Pro Speakers
Fiche technique
Impossible de récupérer les informations sur la disponibilité
Informations produit
FabricantMULTICOMP PRO
Réf. FabricantABS-224-RC
Code Commande51R6319
Gamme de produitMulticomp Pro Speakers
Fiche technique
Transducer FunctionSpeaker
Power Rating RMS3W
Driver TypeGeneral Purpose
Impedance4ohm
External Diameter - Metric-mm
Power Rating Nom2W
External Width - Metric20mm
Resonant Frequency400Hz
Sound Pressure Level (SPL)83dB
Speaker ShapeOval with Rectangular Frame
External Diameter - Imperial-"
External Width - Imperial0.79"
Product Dimensions40mm x 20mm x 5.8mm
Frequency Response Min200Hz
Frequency Range200Hz to 20kHz
Temperature Grade-
Frequency Response Max20kHz
IP Rating-
Speaker MountingFlange Mount
IP Rating-
Product RangeMulticomp Pro Speakers
Speaker MountingPanel Mount
Power Rating Max3W
External Length - Metric40mm
External Depth - Metric5.8mm
External Length - Imperial1.57"
External Depth - Imperial0.23"
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit
ABS-224-RC is a general-purpose speaker with a durable paper cone and panel mount design, offering a power rating of 3W and an impedance of 4ohms. It provides a broad frequency response range from 200Hz to 20KHz, making it suitable for clear audio output across low to high frequencies.
- Ideal for a range of audio applications, ensuring full sound clarity
- Compatible with standard audio amplifiers and systems
- Suitable for small to medium audio outputs
- Provides natural sound quality and lightweight construction
- Easy to integrate into enclosures and panels for secure mounting
- Operating temperature range from -20°C to 70°C
- Material noryl is black
- Dimension of 13.7mm x 7.6mm
- Internal circuitry type
Spécifications techniques
Transducer Function
Speaker
Driver Type
General Purpose
External Diameter - Metric
-mm
External Width - Metric
20mm
Sound Pressure Level (SPL)
83dB
External Diameter - Imperial
-"
Product Dimensions
40mm x 20mm x 5.8mm
Frequency Range
200Hz to 20kHz
Frequency Response Max
20kHz
Speaker Mounting
Flange Mount
Product Range
Multicomp Pro Speakers
Power Rating Max
3W
External Depth - Metric
5.8mm
External Depth - Imperial
0.23"
Power Rating RMS
3W
Impedance
4ohm
Power Rating Nom
2W
Resonant Frequency
400Hz
Speaker Shape
Oval with Rectangular Frame
External Width - Imperial
0.79"
Frequency Response Min
200Hz
Temperature Grade
-
IP Rating
-
IP Rating
-
Speaker Mounting
Panel Mount
External Length - Metric
40mm
External Length - Imperial
1.57"
SVHC
No SVHC (21-Jan-2025)
