RP100H-11048SRW/P-HC
Isolated Through Hole DC/DC Converter, Half Brick, 101 W, 1 Output, 48 V

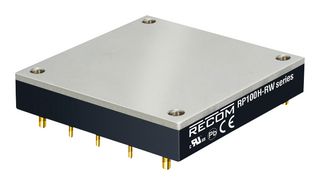

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRECOM POWER
Manufacturer Part NoRP100H-11048SRW/P-HC
Newark Part No.01AC3214
Product RangeRP100H Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
| Quantity | Price |
|---|---|
| 1+ | $288.550 |
| 10+ | $267.950 |
| 25+ | $258.430 |
| 50+ | $248.930 |
| 100+ | $237.820 |
Price for:Each
Minimum: 2
Multiple: 2
$577.10
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRECOM POWER
Manufacturer Part NoRP100H-11048SRW/P-HC
Newark Part No.01AC3214
Product RangeRP100H Series
Technical Datasheet
DC / DC Converter TypeHalf Brick
Output Power Max101W
No. of Outputs1 Output
Output Voltage - Output 148V
Output Current - Output 12.1A
Output Voltage - Output 2-
Output Current - Output 2-
Product RangeRP100H Series
Approvals & StandardsCSA, UL
DC / DC Converter Output TypeFixed, Adjustable
Width57.9mm
Height24.13mm
DC / DC Converter MountingThrough Hole
Depth61mm
Input Voltage DC Min43V
Input Voltage DC Max160V
SVHCLead
Product Overview
The RP100H-11048SRW/P-HC from Recom Power is a half brick, single output, 101W DC/DC converters designed for railway rolling stock and high voltage battery applications. The high efficiency converters has case fitted with threaded inserts to allow secure mounting to the PCB or bulkhead for use in high shock and vibration environments.
- Input voltage range from 43VDC to 160VDC, 4:1 wide input range
- Output voltage is 48V
- Output current is 2100mA
- Input current is 1007mA
- Pi-type internal input filter, no minimum load required
- Efficiency up to 90%
- 3KVAC reinforced insulation for 110Vin
- Positive logic CTRL function with premounted heat sink
- Plastic case, aluminium base plate and silicone (UL94 V-0) potting
- UL60950-1, cURus E196683 and CE certified
Applications
Power Management
Technical Specifications
DC / DC Converter Type
Half Brick
No. of Outputs
1 Output
Output Current - Output 1
2.1A
Output Current - Output 2
-
Approvals & Standards
CSA, UL
Width
57.9mm
DC / DC Converter Mounting
Through Hole
Input Voltage DC Min
43V
SVHC
Lead
Output Power Max
101W
Output Voltage - Output 1
48V
Output Voltage - Output 2
-
Product Range
RP100H Series
DC / DC Converter Output Type
Fixed, Adjustable
Height
24.13mm
Depth
61mm
Input Voltage DC Max
160V
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
