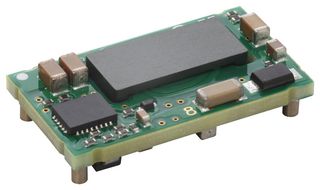

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMURATA POWER SOLUTIONS
Réf. FabricantMYBSP00502ABF
Code Commande39AH6980
Gamme de produitMYBSP Series
Fiche technique
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 28 semaine(s)
Quantité | Prix |
---|---|
100+ | 21,840 $ |
250+ | 20,300 $ |
500+ | 18,960 $ |
Prix pour :Each (Supplied on Full Reel)
Minimum: 200
Multiple: 200
4 368,00 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantMURATA POWER SOLUTIONS
Réf. FabricantMYBSP00502ABF
Code Commande39AH6980
Gamme de produitMYBSP Series
Fiche technique
Power Supply Applications-
DC / DC Converter Type-
Input Ratio2:1
Output Power Max10W
No. of Outputs1 Output
Output Voltage - Output 15V
Output Current - Output 12A
Output Voltage - Output 2-
Output Current - Output 2-
Output Regulation-
Isolation Voltage2.25kV
Input Voltage DC Nom48V
DC / DC Converter Output TypeFixed
Width26mm
Height6.2mm
DC / DC Converter MountingSurface Mount Device
Depth14.8mm
Input Voltage DC Min37V
Input Voltage DC Max57V
Product RangeMYBSP Series
SVHCNo SVHC (07-Nov-2024)
Aperçu du produit
- Isolated DC-DC converter for PoE PD
- Support IEEE802.3af class0
- Surface mount module
- 2250VDC input-output isolation
- Operating temperature range from -40 to +85°C
- Module has self-protection features
- Include input undervoltage lockout and output current limit
- 80% efficiency (typ)
Spécifications techniques
Power Supply Applications
-
Input Ratio
2:1
No. of Outputs
1 Output
Output Current - Output 1
2A
Output Current - Output 2
-
Isolation Voltage
2.25kV
DC / DC Converter Output Type
Fixed
Height
6.2mm
Depth
14.8mm
Input Voltage DC Max
57V
SVHC
No SVHC (07-Nov-2024)
DC / DC Converter Type
-
Output Power Max
10W
Output Voltage - Output 1
5V
Output Voltage - Output 2
-
Output Regulation
-
Input Voltage DC Nom
48V
Width
26mm
DC / DC Converter Mounting
Surface Mount Device
Input Voltage DC Min
37V
Product Range
MYBSP Series
Documents techniques (2)
Produits de remplacement pour MYBSP00502ABF
1 produit trouvé
Législation et Questions environnementales
US ECCN:Unknown
EU ECCN:Unknown
Conforme RoHS :Y-Ex
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (07-Nov-2024)
